美国Edmund 扩散片Diffuser Opal
摘要：美国Edmund 扩散片Diffuser Opal

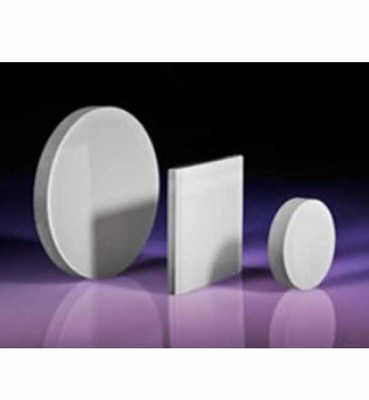

Product Name: Opal Diffusing Glass
Brand： Edmund
Description:
Features a Milky White 'Opal' Coating
Even Diffusion Helps Create a Near Lambertian Source
More Diffusion than a Standard Ground Glass Diffuser
Similar to ground glass, but with one surface flashed with a milky white "opal"
coating to diffuse light evenly. Opal Diffusing Glass can be used to achieve a near Lambertian
distribution. The level of diffusion in opal glass causes a large amount of scattering loss.
Note: Due to the manufacturing process of the opal coating, the transmission may vary from
one production to the next.
Specificaiton:
|
Dimensions (mm) |
50mm x 50mm（43718） |
| Dimensional Tolerance (mm) | ±0.76 |
| Thickness (mm) | 5.0 - 6.0 |
| Coating | Milky White 'Opal', 0.45 +0.35/-0.2mm in Thickness |
| Substrate | Opal Glass |
| RoHS | Exempt |
